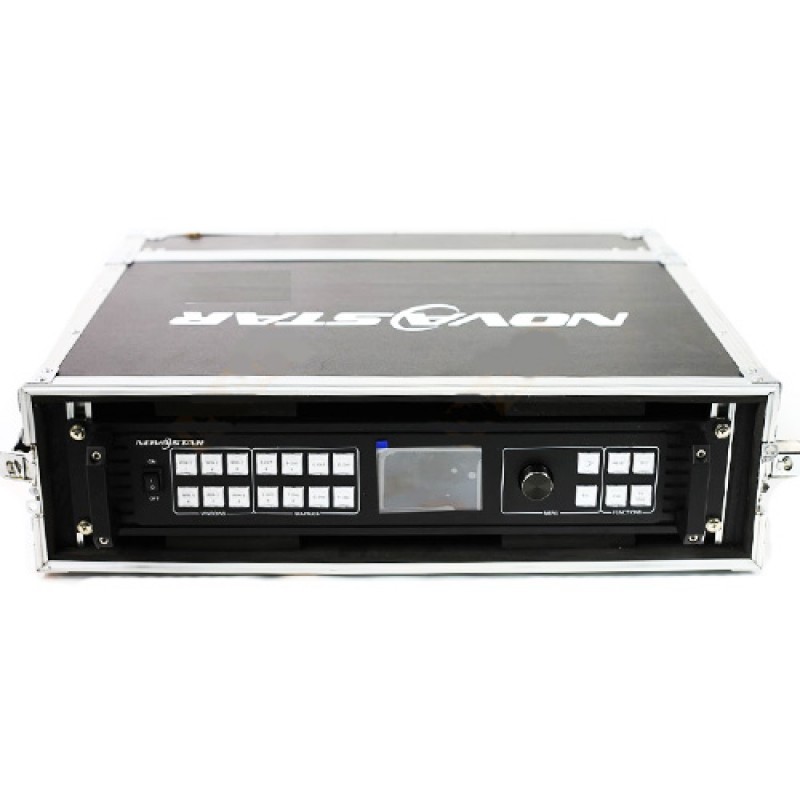

ВИДЕОСПЛИТТЕР NOVA N6

Input

Port

Qty

Resolution specifications

DualLink DVI/HDMI1.4/DP1.1
(Choose one from these inputs)

1

Supports 4K*2K@30Hz
2560×1600@60Hz(downward
compatible)

DVI(DVI-D)

4

VESA standard
1920×1080@60Hz(downward
compatible)

CVBS(BNC)/VGA(DB25)/HDMI/
DVI(DVI-D)
(Choose one from these inputs)

1

VESA standard
1920×1080@60Hz(downward
compatible)

SDI(BNC)

2

720p, 1080p

Input

Port

Qty

Resolution specifications

DVI(DVI-D)

4

Resolution is programmable output. The maximum
supported resolution of each port is 1080p
(DualLink output is available for DVI1 and DVI3.)

SDI Loop(BNC)

2

480i, 576i, 720p, 1080i/p(3G SDI), same as SDI input

HDMI(Type A)

1

Supported output resolution: 1920×1080@60Hz
